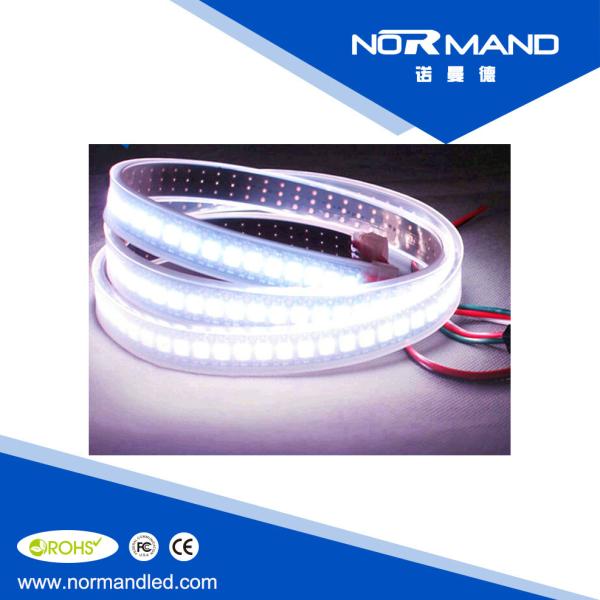

2015 top sale outdoor led strip sk9822 144 -1m

Description:

SK9822 is the same as APA102 Led Strip,the same pcb and controller,it has 30led/m,60led/m,and 144led/m.

Patameter:

• Input voltage	DC5V
  IC type	SK9822
  LED Qty	144pcs/meter
  IC Qty	144pcs sk9822 IC chips per meter, ic built inside of led
  Wave length(NM):	R-650mcd, G-520mcd,B-460mcd
  Power(W/M)	Max 43.2W/M
  Pixel	144pcs/meter
  View angle	120 degree
  Life span	over 50000hrs
  Dimension	1000*12*2.2mm
  Certification	ce & rohs
  WaterProof	IP20/IP65/IP67
  Packaging	1M/reel in antistatic bag

• Connection:

  1) Signal wire: DC+, DAT, CLK, GND

  2) DC+ and GND connect to power supplier; DAT, CLK and GND connect to controller

  3) Relative Controller: SPI controller support sk9822 chip; when use DMX decorder, can connect to DMX system

  4) Support online control

  Color:

  1) Each pixel can be controlled individually

  2) Can show any color

  3) Can be used as flexible led display screen to show image and video

  Installation Notice:

  1) Make sure the connection is correct according to the diagram

  2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value

  3) Keep the surface of installation clean and smooth avoid breaking off

  4) Avoiding the crook area just the position of LED and other components, in order to protect the product and

• extend the life span of the product

•
