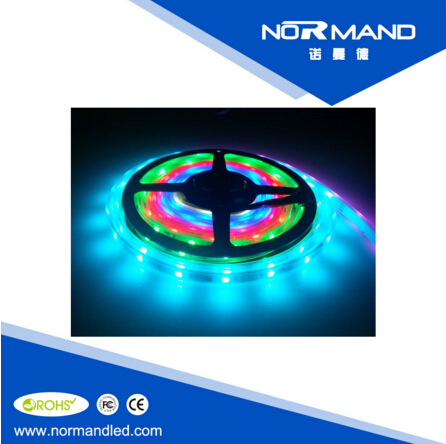

(5m/roll) DC12V ws2811 ic 30/48/60leds/m IP30/IP65/IP67 5050 SMD rgb addressable led pixels strip

Specifications:

• • Lighting sources: 5050 SMD RGB LED
  • Constant current
  • PCB output voltage: 12V DC
  • LED quantity: 30LEDs per meter
  • IC chip:WS2811IC
  • Color: Full color
  • IP65/IP67/IP68 waterproof are available
  • Working/storage temperature: -20 to 40°C
  • 1IC Control 3LED

Characteristic:

1.This addressable ws2811 led strip consist of 5 meters in a reel,30 pcs RGB led per meter, three leds one group,and each group with a WS2811 IC.

2.Flexible PCB: White color, PCB width 10mm.

3.Waterproof-silicon tube coating: W14*H4mm.

4.DC12V available,constant voltage operation.

5.Voltage drop from start to end of 5M +/- 2v.

6.3pin JST SM connector(non-waterproof) soldered in each end of strip, Extra 2 single wire for powering in input side.
7.Customized length available.

Connection:
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support ws2811; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protectthe product and extend the life span of the product
